Gameplay systems progress

In addition to building art content for the cylinder head I have been working on improving the systems for part assembly and I have begun building the fastener object class so that I can start implementing tools.

For my assembly systems I have been working on a flexible way to allow a single part to be installed in multiple locations. This will be used for most fasteners but there are also many other parts that should install into many locations. I had a simple system in the prototype video but it wasn’t flexible to cover all use cases and this new system is much more robust. The trick to making a single part snap to multiple locations is both setting is both doing the actual part snap, and making sure you have a system to correctly store bools in order to run logic around install status. I’m using Unreal’s socket system to snap parts together- A socket is just a transform, there is no way to query a socket and see if it is occupied. If every single part in an assembly is unique and can only be installed in one location, you can simply make a bool  for each socket, and then set the corresponding bool when a part is installed or removed. If you don’t actually know what object or what location on an object a part was installed, managing the bools becomes more challenging.

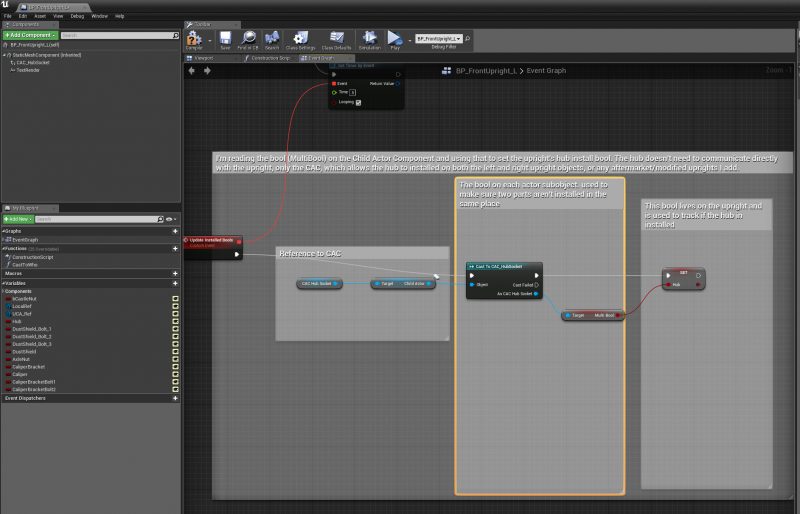

The solution I have come up with is using an intermediary Child Actor Component (CAC) any time I want one part to attach to many locations. A CAC is an instance of a blueprint that is spawned as a child object at run time. In my use case, each CAC is just a null static mesh (cube with visibility turned off) that has a socket I can snap to, and a single bool to indicate if that CAC slot is occupied. In this example, the hub object can snap to either the left or right uprights. The hub is actually snapping to the CAC object that each upright contains. The hub doesn’t need to communicate with the upright- On install/removal it only changes the bool on the CAC (called MultiBool). The upright is then responsible for checking the CAC, reading the status of MultiBool, and then settings its own hub installation bool to match MultiBool on the CAC. I’m checking the CAC for it’s bool status once every .5 seconds, I could probably make the check even less often since that bool isn’t actually used by the hub for it’s install or removal logic.



Here is a video of the wheel studs, front hub, and uprights all using this system:

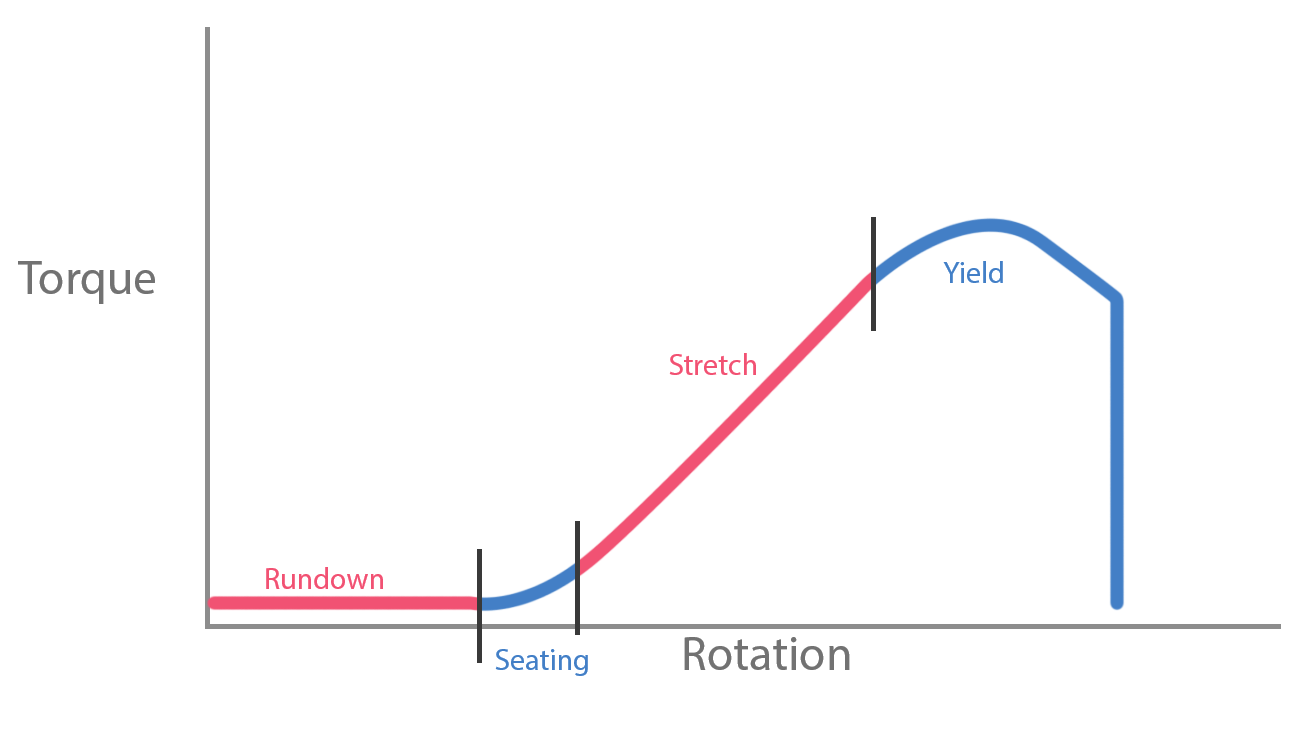

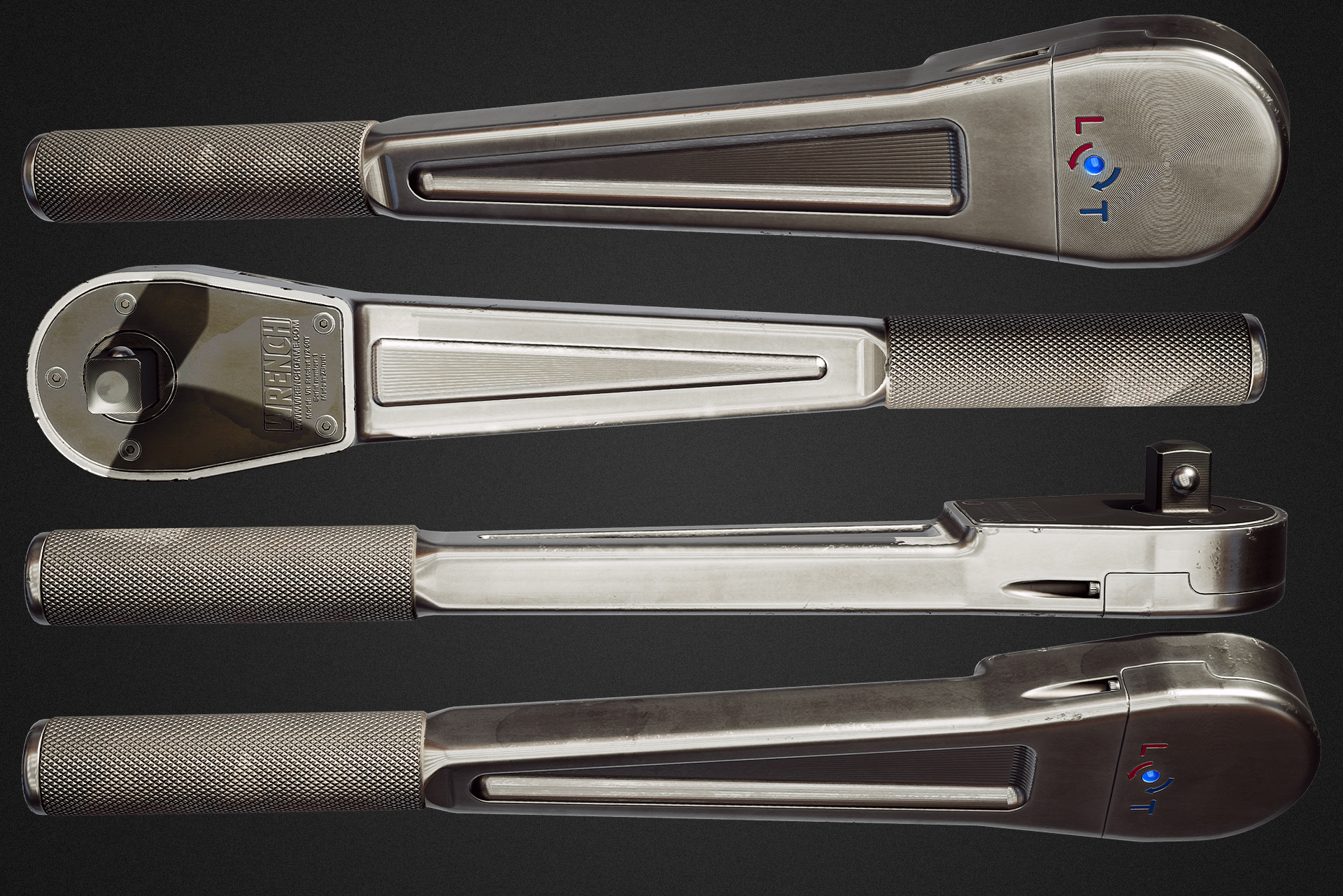

I have been prototyping the fastener object class. The fastener object class is a subclass of the main snap part class with a bunch of added information:

Int: Fastener head size. Used to automatically swap sockets or wrench sizes to fit the fastener

Float: Fastener length

Float: Fastener thread pitch

Float: Major Diameter

Bool: Is torque critical fastener?

Float: Target clamping force

The art for every fastener in Wrench is accurate down to the thread pitch.  I keep notes when I build fasteners so I know the dimensions. By including this data in each game object I can do a bunch of interesting things. First, I can make the visual representation of tightening from loose to finger tight appear accurate. If I know both the thread pitch the bolt can be moved inwards the correct amount per degree of turn added- This will make the number of turns to reach finger tight accurate. After the fastener is finger tight I can simulate an accurate clamping force based on how many degrees it is turned past finger tight, bolt length, thread pitch, and major diameter. That calculation can be re-purposed into torque wrench settings or bolt stretch gauge readings. Most fasteners in the game will not be torque critical, but they will all generate and store a torque value. I’m not planning to penalize the player for over/under torquing non critical fasteners but I can flag important fasteners (every internal engine bolt, lug nut torque, axle nut…) with the bool to see if it is torque critical and then penalize the player appropriately.

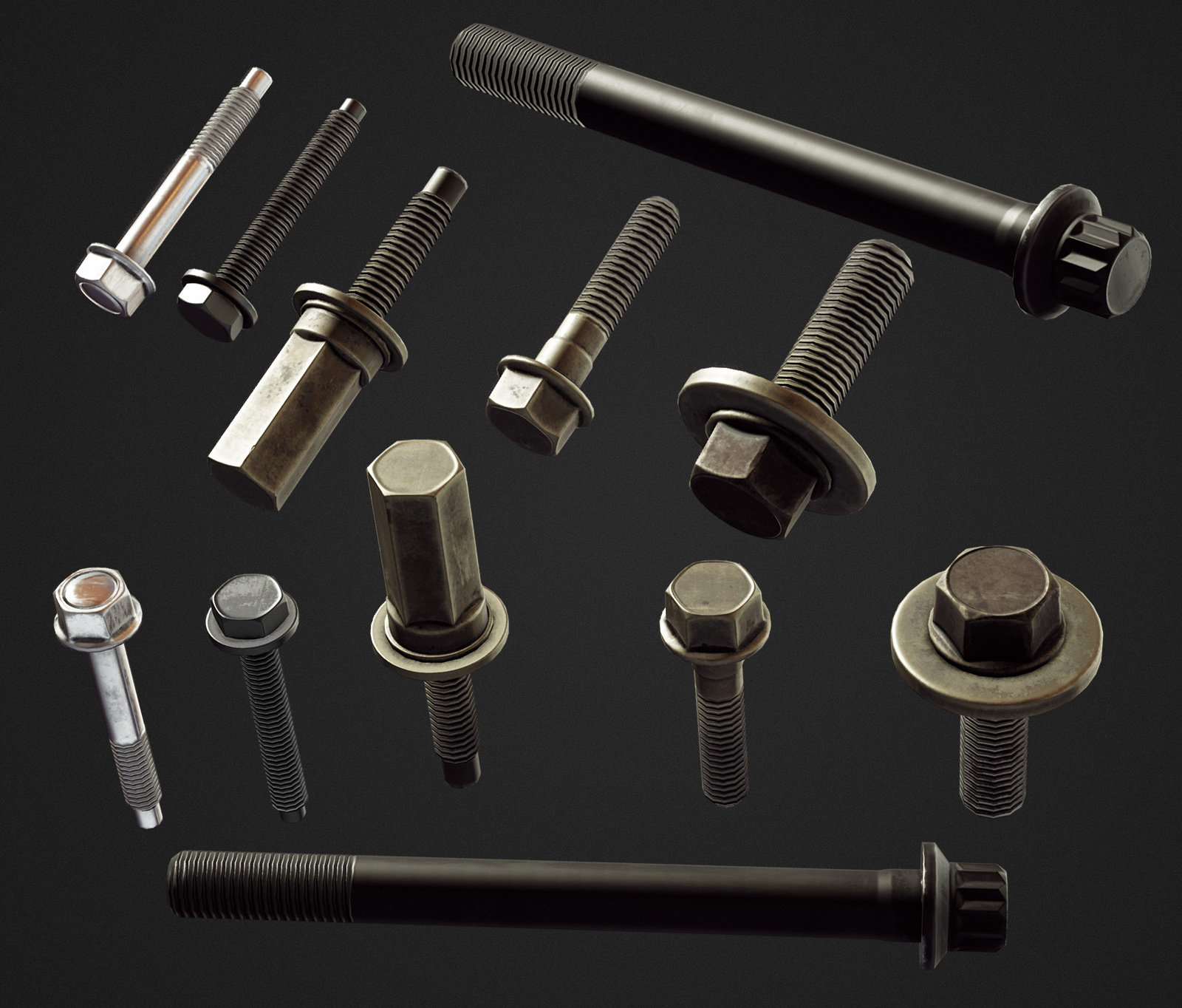

Recently finished art for the cylinder head fasteners:

Art Update- Cylinder Head Parts

I have been making good progress on engine parts. This is most of the components for the cylinder head. All images are in game screenshots. Click for full size images:

Using VR to iterate on physical designs

VR is all about spacial relationships- Unlike designing something in 2d, VR lets you visualize exactly how the object will be seen after it is built. It is not uncommon to finish a project and find out that some aspect of the design did not translate from paper to real life as expected. With VR you can quickly evaluate designs and iterate on them as needed. Eventually this workflow will find its way into more designers hands. For now is limited to people who know a 3d package + have basic knowledge of a game engine.

I spent my last few weekends building a new bed frame and took the opportunity to use VR to iterate on different design sketches. This image shows some of the ideas I brought into Unreal to evaluate. A few were clearly too tall, or only interesting from an unrealistically low viewing angle. Eventually I settled on the design with the wood trim and hidden rear legs. This bed frame is reasonably light and very stiff, thanks to the semi space frame design.



Fabricating the frame was straight forward. This is all 16 gauge 1″ square tube. I made notch templates from my 3d files. The wood is mahogany finished with waterlox. When the finish is fully cured I will knock it down to a less glossy surface. I also cast some low profile urethane rubber feet to protect my floors and not ruin the look of the front legs.

The finished bed in place:

Building more storage for my shop

I do all of my work in a 570 square foot attached garage. The space needs to function as a photo studio, mechanics shop, a metal fab space, and occasionally I do composites work. In the last few years I reached a point where I had too many tools and parts to store and there was no way to get my space picked up and organized. Building content for this game involves storing a lot of parts which has made the problem worse.



This panorama is a good before picture. The 4×8 OSB box is a composites curing oven I don’t use anymore- it was the first thing to go. The back wall has a bookshelf for cans, a filing cabinet, and junk piled around it. I decided to build a storage rack to make better use of that space.





I picked up a few sticks of 1×2 14 gauge- I want the front to be open and 1×2 is stiff enough that it can hold a decent cantilevered load without gussets or support at the front. I also used some 1″ square 16 gauge to run horizontally and hold the small bins.



The total dimensions of the storage rack are 100″x62x24″. The bottom of the rack holds long stock, the next level up holds bins which are each large enough to hold a shortblock. Above that I have small parts bins, then a shelf for cans, and storage for the monolights I use for scanning. I can probably sneak some small shelves into the negative space between the lights.

This is the finished rack. I also added some t8 lighting on a switch:



All of this new storage has allowed me to reorganize my space. The area I use to work on cars is now much cleaner:

The back wall of my shop is more open and usable than it has been in years:





What I have been doing since I posted the prototype video

The prototype video got a huge reaction, way beyond my expectations. Different versions of that video have been viewed over six million times. It is really vindicating to see such clear evidence that there is an audience for this kind of game.

In the last few weeks I have been fixing bugs and improving the software side. This week I am back to building new content and my next task is the engine. I have a spare 2001 engine on a stand but its been cleaned up for install in my car. Building a digital version would involve complete disassembly, aggressive cleaning, then surface treatments on all the parts that would get scanned (block, oil pan, head, valve cover). I don’t want to fully disassemble the 2001 engine that is ready to be dropped into my car- That leaves me with finally doing my 1995 to 2001 engine swap and using my old 1995 engine. The earlier year engines are also a better fit for Wrench since I can skip the complexity of the VVT system.

My car is particularly easy to work on with the modified front end, removed popup headlights, and lack of accessories (no ac, no power steering). Here are some images of the engine coming out:



With the engine removed, I need to thoroughly clean every part, and take good notes so I know where everything goes. I measured the threads and length of every fastener so I could more quickly model them and identify re-use. I will probably end up adding a bolt head size to the measurements in another pass since I will need that to know what size wrenches will fit the fasteners in game:

This is the head after a first pass of degreasing. I’m using simple green (not aluminum safe, but this head will never go back into a car) and a cheap pressure washer. The surface treatment I use for scanning will absorb any oil and turn dark. The surfaces need to all be very clean.

Lastly, here is a image of all the cylinder head parts + clutch parts on my garage floor:

I’m going to try and finish the cylinder head before moving onto the bottom end, which will have a similar number of parts.

Wrench Announcement and Prototype 1 Video

The last two weeks have been busy. I finished my first large prototype milestone and have officially named my game Wrench. I am entering the phase of development where I want increased exposure. If you have been following my development, please share this.

My friend Matt Kohr put together this logo for me:

I also spent some time using Unreal’s new spectator screens for VR to make this video showing off the prototype:



Lastly, I added a media section to this blog where I will stick high res images of the art. Among the images I uploaded is this 4k wallpaper image that shows all of the parts currently working in the game:



I ended up making substantial changes to all of the gameplay systems and added a bunch of new functionality which I will detail in another post later.

Implementing content and finding out my gameplay systems were broken

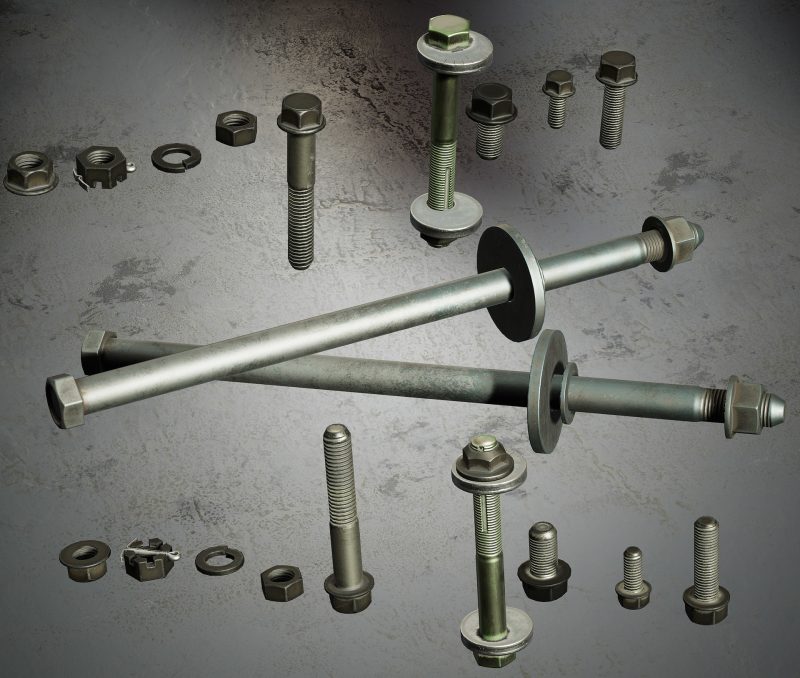

On Wednesday I finished up the art for my prototype milestone. These suspension fasteners were the last thing left between the subframe and the wheel studs:

The next step is taking all my art content and getting it set up with the pickup and snapping system I have already posted about. For VR, it’s best to do as little as possible in tick events. Current VR headsets run at 90 frames per second and future headsets my run at higher framerates. For that reason, I built all of my functionality to work using Begin and End Overlap events. Basically, when car part type objects intersects another car part object it executes the system of communicating between parts to find out what is or isn’t installed, and then runs the logic to allow install or removal of the part when the the correct criteria are met. This seemed to work well in testing but when I started implementing my content I quickly noticed the status of what parts were installed, allowed to be installed, and allowed to be removed were not being updated reliably. This manifested itself as parts that said they could be removed when they should have been captive, or the game erroneously preventing installation. My game is essentially a whole lot of pieces trading and checking yes/no values. Figuring out where the systems were breaking down took me a few days and these were the major causes:

Other overlap events interfering with overlap events that control part install/removal
I stopped using overlap events for pickup since it wasn’t precise enough (I detailed that one of the other posts). When the player pulls the trigger to pick up an object I use a sphere trace instead of an overlap. I was still checking overlap of a capsule collider in order to set the hand status to “can pickup” which is a subtle hand animation and a recoloring of the pickup indicator to show if an object can or can’t be removed or picked up. I had this capsule on it’s own collision channel and the parts had extra collision boxes on a matching channel. I had thought having separate channels would prevent any interference. In retrospect, the event is On Overlap, not On Overlap of Channel. Any time there was unintended overlap event from this capsule collider the execution loop for snapping and updating variables would get disrupted. Depending on the shape of the collision volumes and way the parts were being held, this problem may or may not have manifested which made figuring out what was happening confusing. The solution I came to was to replace the capsule collider with a trace at a regular interval (every .2 seconds works well)
Only tracing for a single object on overlap:
When two parts overlap I do a sphere trace that is about a meter wide to get references to nearby parts. When I set this up I accidentally used simple sphere trace. Unreal has two categories of traces. A simple trace which only returns the first actor it hits and a multi trace which returns a list of all the actors that the trace intersected. In testing I didn’t notice the mistake because I was only working with a few objects at a time and the actor it returned happened to be the correct one. Switching that out for a multi sphere trace allowed me to loop through a list of actors and get information from all of the nearby actors. Like the last issue, this one presented itself intermittently depending on position of all the actors in the area.

Updating variable AllowRemoval on overlap doesn’t work:
This one seems obvious in retrospect but took me several hours to figure out. When the overlap event begins, I get references to nearby objects and check the necessary objects to see what is or isn’t installed. For installation, I check to see if the parts it attaches to are currently installed along with any specific criteria I decide (does the player have access to it? Is it realistic or practical to allow install?). For example, if the player installed a coilover shock in the car without a spring in it, I’m not going to allow them to install that spring until the shock is removed from the car and the top hat is off of the shock. AllowRemoval works the same way, I check nearby objects and decide if the part is captive or should be allowed to be removed. After the part is snapped in place, I change the part’s status to Installed. Other parts check this installed status when their overlap events occur and the system seemed to work well. The issue is that for AllowRemoval this doesn’t actually make sense.

The example that was giving me issues: A front upper control arm must have bushings installed before it can be installed in the car. Also, the bushings can only be installed, or removed, when the control arm is not on the car. If the Bushings are each checking the control arm for Allow Removal, and the control arm is snapped into the car, that check will not happen until an overlap event is fired. When the bushings were last overlapped, the control arm wasn’t in the car, so their AllowRemoval status was set to true. When the control arm was snapped in place, the bushings didn’t get a new overlap event so they didn’t have the correct status. You could remove them but then not reinstall them. Also if you waved another car part over them they would suddenly have the correct status. This didn’t show up in my initial testing because as I mentioned earlier I had that capsule collider attached to the hand which generated a whole bunch of extra overlap events and masked the issue. To fix this I am setting allow removal at regular intervals, not as part of the overlap event loop. On event play I do a delay of a random float between .1 and 2. After the delay I start a timer that calls an event every .2 seconds which updates the AllowRemoval variable. The random length delay is to make sure I’m not updating 500 or 1000 objects at once on the same .2 loop, instead that small bit of compute time is spread out evenly in that .2 second window.



None of these issues were particularly difficult to fix but they way they interacted with each other made figuring them out challenging. Because they were intermittent, it was hard to tell where one issue started and another began. When it seemed like I knew what breaking the game, the fix didn’t do what I expected, or the debug messages seemed to be firing without a clear reason. The takeaway for me is to test my systems with more complicated content that replicates how the game will actually work and don’t assume that a system is only broken for one reason.

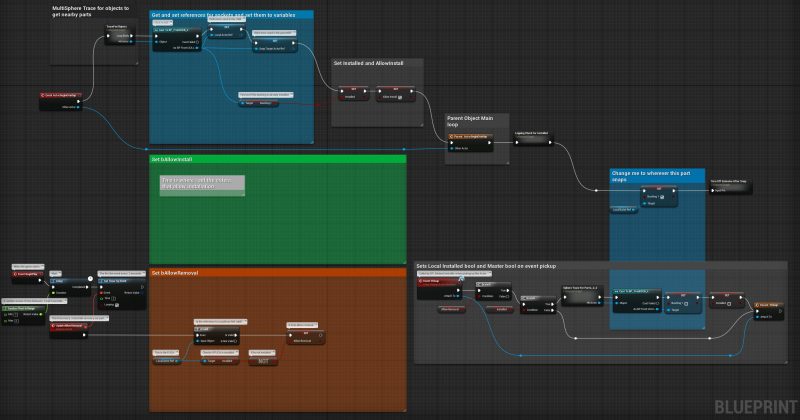

I am moving on to implementing these systems with all of my art content. This means I am making hundreds of copies of the child class BP and editing the details for each part. I did some cleanup and color coding to make that process quicker:

Tutorial: Photogrammetry Rubble Prop

I wrote this tutorial for my personal website earlier this year but I am moving it to this blog for it’s faster servers and because writing a follow up guide covering what I have learned building models for this game.

Equipment

  • Nikon D800E with a Sigma 50mm 1.4
  • 2 320 Ws monolights
  • Strip Boxes
  • 1/2″ Drywall
  • Matte spraypaint

Software:

  • Reality Capture
  • Adobe Bridge or Lightroom
  • Zbrush
  • 3dsmax
  • Handplane Baker
  • Substance Painter
  • Unreal Engine 4

Basics

Before we can get into setting up materials or taking photos, it is important to understand how photogrammetry works. Photo based 3d scanning attempts to match points between images. After finding a matching point in multiple photos the software is able to calculate a coordinate. This process is repeated millions of times and you end up with a point cloud that represents the form of the object. We see form/volume based on light and shadow but photogrammetry does not. The software is just looking for points that it can match between images.The image below illustrates this difference. To our eyes the circle on the left is immediately readable as a sphere. For photogrammetry software images like this are confusing and will not produce good scan results. The sphere on the right is much closer to the kind of information the software can use. The lighting is very flat and there are many surface details that can be matched up between photos. The perfect photos for photogrammetry are totally sharp, no out of focus areas or camera shake, consistent in exposure and white balance between images, have no reflective or transparent surfaces that change appearance with angle, and show no sensor noise. You also need detail in all the shadows and highlights. If a highlight is blown out or a shadow is underexposed there is no usable information.

The Base Plate

I’m using a 6”x6” steel plate that is reasonably flat. The flatter the surface the better. I prepped the surface of the plate by dusting it with 3 different colors of matte spray paint and then I took a toothpick and dabbed some white reference points in an X pattern. The white dots will provide landmarks for manual setting control points. The flatter your plate, the easier it will be to mask the rubble off of the surface.

Rubble Setup

I’m using broken up pieces of half inch drywall. Since drywall breaks into very fine particulates, a small pile makes a convincing stand in for full sized debris. Break the drywall in a bag then sort out different sized pieces that you want to use. You want to pick out a good mix of sizes. Also grab some of the dust. Avoid or clean off as much of the backing paper as possible. Super thin surfaces will make it into the scan and will not translate to a low poly model or bake well. If any paper makes it into your scan you will need to clean it up in zbrush.

Pose your rubble by dumping your drywall pieces onto the plate. Usually I pour the debris several times and manipulate it with my hands until I have something I like. If you can see clear signs of hand manipulation at this stage, you will also see it in the final result.

Lighting

I’m using two 320 Ws monolights with strip boxes for diffusion. You can get away with much smaller flash units, I have these turned down to 1/8 power when shooting small objects. Also strip boxes provide enough diffusion without taking up too much space. You want to avoid positioning yourself between the lights and the subject so that you don’t cast shadows. A full sized softbox would block access for taking photos.

If you don’t have any lighting equipment use open shade on a bright day and a tripod as I described above.

How to set up your camera

Set your ISO to the minimum practical setting for low noise (usually ISO 100).
Set your camera to manual exposure mode and manual white balance
Set your camera to shoot in raw
Stop down to ~f11. This will get more of rubble in focus at once

Most people don’t have off camera flash units (on camera flash or any moving lighting is a big no no) and are going to be shooting with continuous lighting. If this is the case, you need a decent tripod and a cable release. Also set mirror lockup on your camera. Your exposure times are going to be very long and you will need to wait for the tripod to settle between each image. If you do have access to flash photography you can handhold all of your images and shooting will only take a few minutes.

Shooting

Shoot a test exposure to make sure the camera is set correctly. Check the histogram and make sure no highlights are being clipped and that you have shadow detail.

Start at a comfortable eye level and take photos a few inches apart circling the object. You should end up with about 30 images for your first pass. Follow this up with additional passes from a low and high angle. After you have 3 initial circles of photos I come in closer and try to get detail shots. Also, start shooting at two focus depths, once focused on the back edge of the rubble, and once focused on the front edge. Even at f/11 only portions of the rubble will be in focus at a time. For this rubble pile I ended up shooting 120 photos.

Processing the images

Start by loading your images into lightroom or bridge. Pixel peep your photos and make sure they are:

  • Sharp
  • Exposed correctly
  • The subject fills the frame
  • Clean, no sensor noise

In my case the photos were about a half stop over exposed. I tweaked the exposure to bring back highlight detail. After that I adjusted the raw file settings to reduce the contrast.
I applied this raw profile to all my images and exported the files as tiffs. You can use max quality .jpg if you are concerned about storage space.

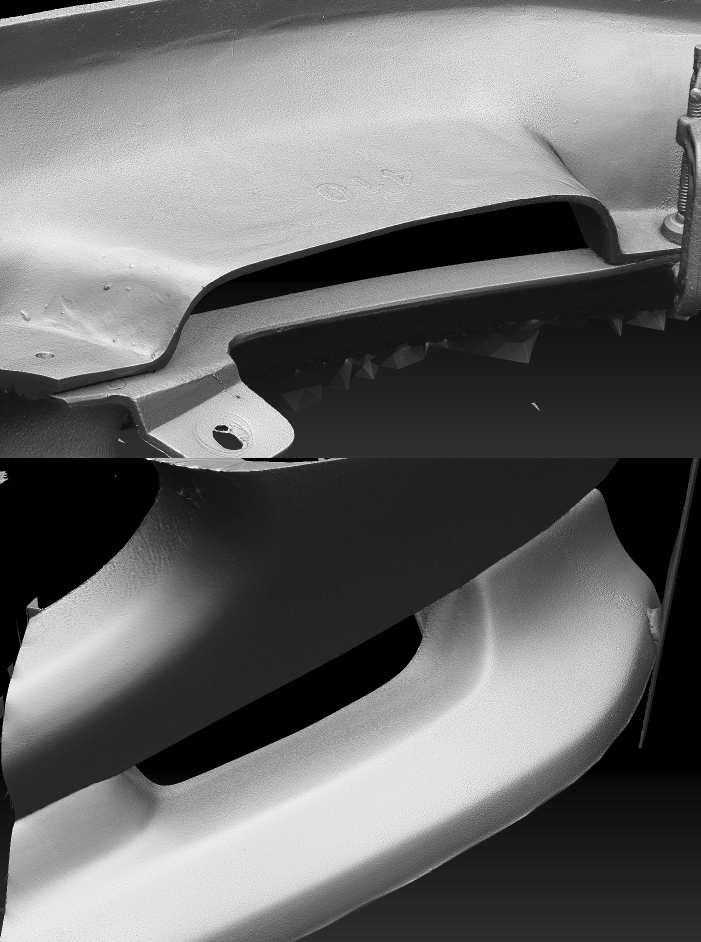

Reality Capture

Sculpt, Low, and Baking



Game update

Over the last week I made a bunch of a new art and did polish pass on the gameplay system. In the prior gameplay systems posts I was working with a single variable that controlled install and removal called “bInstalled.” This was good for testing the flow of communication and getting the basic structure working, but in practice it only prevents the player from installing two parts into the same spot. I now use 3 boolean variables: bAllowInstall, bAllowRemoval, and bInstalled. These do exactly what they sound like. In each child object blueprint I collect bInstalled properties from all the necessary dependent parts and use them to set the status of bAllowInstall and bAllowRemoval. I only need to check dependencies one step removed so the lists are generally pretty short. This is an example of a child class blueprint:



I also made some significant changes to how players pick up objects. In the Unreal VR template object pickups occur when a valid object overlaps a sphere that is hovering near the player’s hand. This is too cumbersome for grabbing small parts off of an assembly and it has a tendency to grab captive parts that shouldn’t be reachable. First I replaced the sphere with a narrow capsule to allow for tighter pickup targetting. This improved the “fat-fingering” issue but didn’t help with the captive part removal problem. A good example of this would be pulling the axle nut off of a hub without first removing the dust cap. To solve this I replaced the sphere overlap check with a ray cast from the hand. I also added a visual indicator to show the grabbing range and tell you if the part is allowed to be picked up or not.  When the players hand is near a pickup object, I render a shaft of light coming from the players hand. When you pull the trigger to attempt a pickup, a ray is cast out of the hand and stops when it hits an object. If the object’s bAllowRemoval is set to true, the shaft of light turns green and you can pick up the part. If the bAllowRemoval is false the shaft turns red and the part stays where it is.

Here is a video:



Garage updates

I made the garage bigger and brighter while adding more variety to the types of spaces. I’m still working at a sketch level of detail so that I can keep things flexible for future changes. I’ll do polish pass on the garage much later in development when I have a totally clear idea of what all the different spaces need to do.

On one end I added a small room, I think this is where the shop computer will live. This room is darker with lower ceilings and a slight step up between floors. Opposite of that,  I raised the ceiling to bring in more light and create more space for a lift. After a few iterations of adding clerestory windows I settled on second roof running at a reverse pitch with skylights. This brings in a bunch of direct light which bounces around and brightens up the space.
